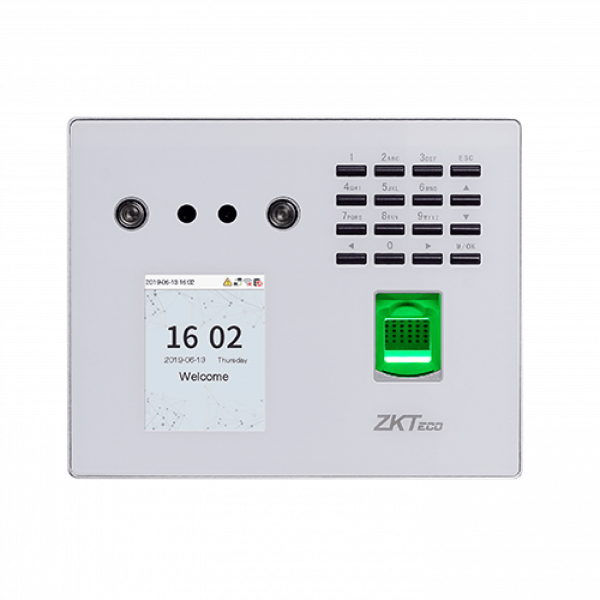

Hybrid Visible Light Face Biometric Time Keeping with Door Access (MB560-VL)

Linux-Based Hybrid Biometric Time & Attendance and Access Control Terminal with Visible Light Facial Recognition


MB560-VL is a multi-biometric identification terminal with innovative Visible Light Facial Recognition technology.

With the latest algorithm and facial recognition related technologies, the device can perform recognition of a target in a
distance from 0.3m to 2m and will function automatically when it detects a face in the detection distance so as to deliver
better recognition quality in terms of speed and accuracy than the previous near-infrared facial recognition terminal.

• Visible Light Facial Recognition
• Anti-spoofing algorithm against print attack (laser, color and B/W photos), videos attack and 3D mask attack
• Multiple verification methods: Face / Fingerprint / Card / Password
• Optional card modules: 125KHz ID Card (EM) / 13.56MHz IC Card (MF)
• Supplement lighting with adjustable brightness

Additional information
2.8-inch TFT Screen

Face Capacity

Fingerprint Capacity

Card Capacity
10,000 (Optional)


TCP/IP, WiFi (Optional), USB Host

900MHz Dual Core CPU, Memory 512MB RAM / 8G ROM, 2MP WDR Low Light Camera, Adjustable LED Supplement Lighting

Access Control Interface
3rd Party Electric Lock, Door Sensor, Exit Button

Facial Recognition Speed

Power Supply
12V 1.5A

Working Temperature
0°C – 45°C
